Lose the risk of damaging your transducer cables.  Lose the electrical tape that comes off when wet.  No bulky plastic rings that can pop off.  The Flexroute® cable clamp forms around both the cable and frame providing uniform traction and long lasting protection that a cable tie just can't accomplish on its own. The Flexroute® cable clamp safely secures and protects a conduit of any kind (pneumatic, hydraulic, coaxial, transducer, etc.) to a fixed structure like submersible drive shaft sleeves on fishing boat trolling motors to wakeboard boat towers and UTV roll cages for lighting and audio.

Our system is for DIYers and industry professionals alike. The Flexroute® cable clamp is out there today keeping cables and frames protected with a professional look and performance standard cable ties just can't achieve.

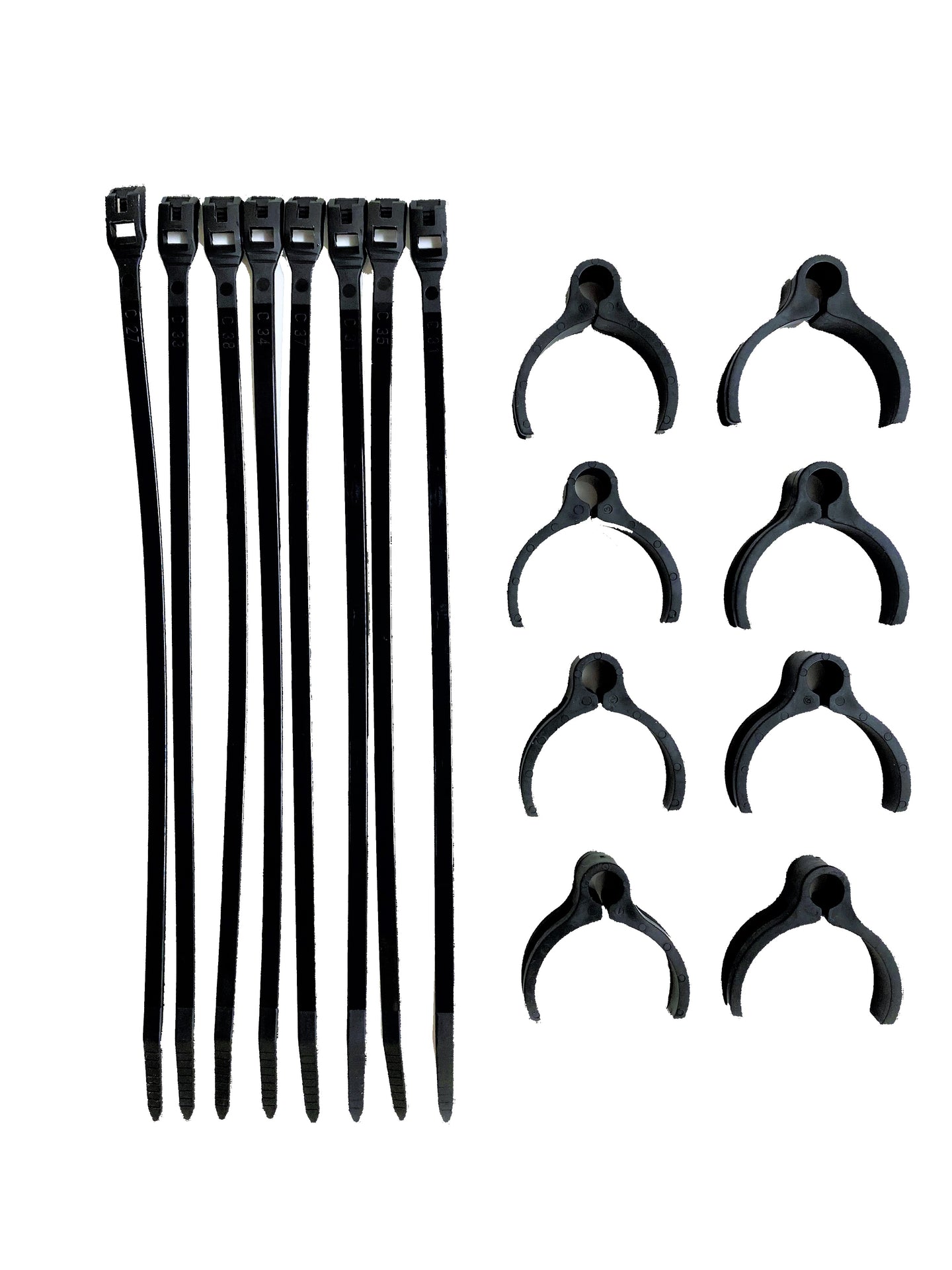

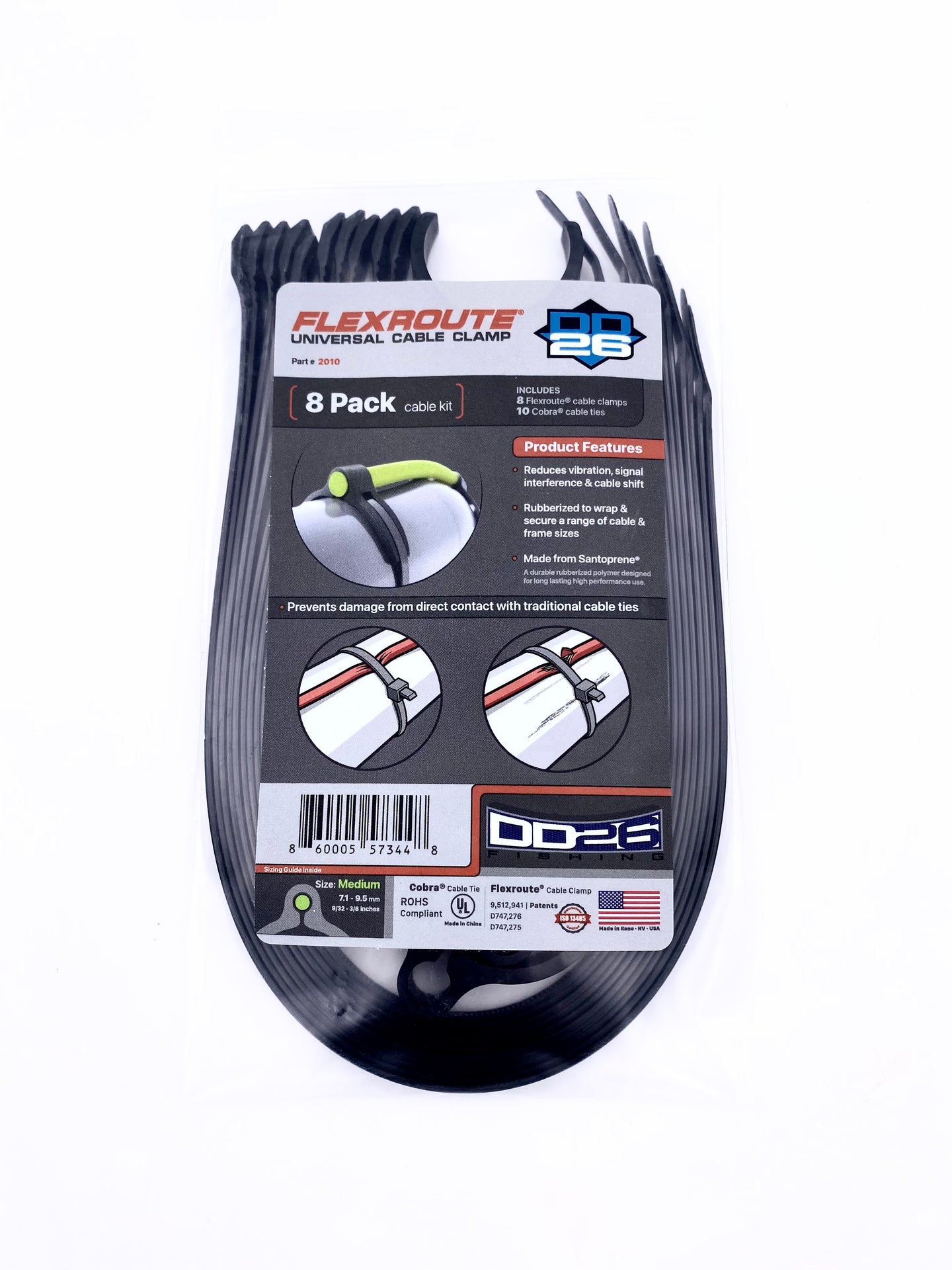

• 8 Pack comes with 8 cable clamps and 8 low profile zip ties

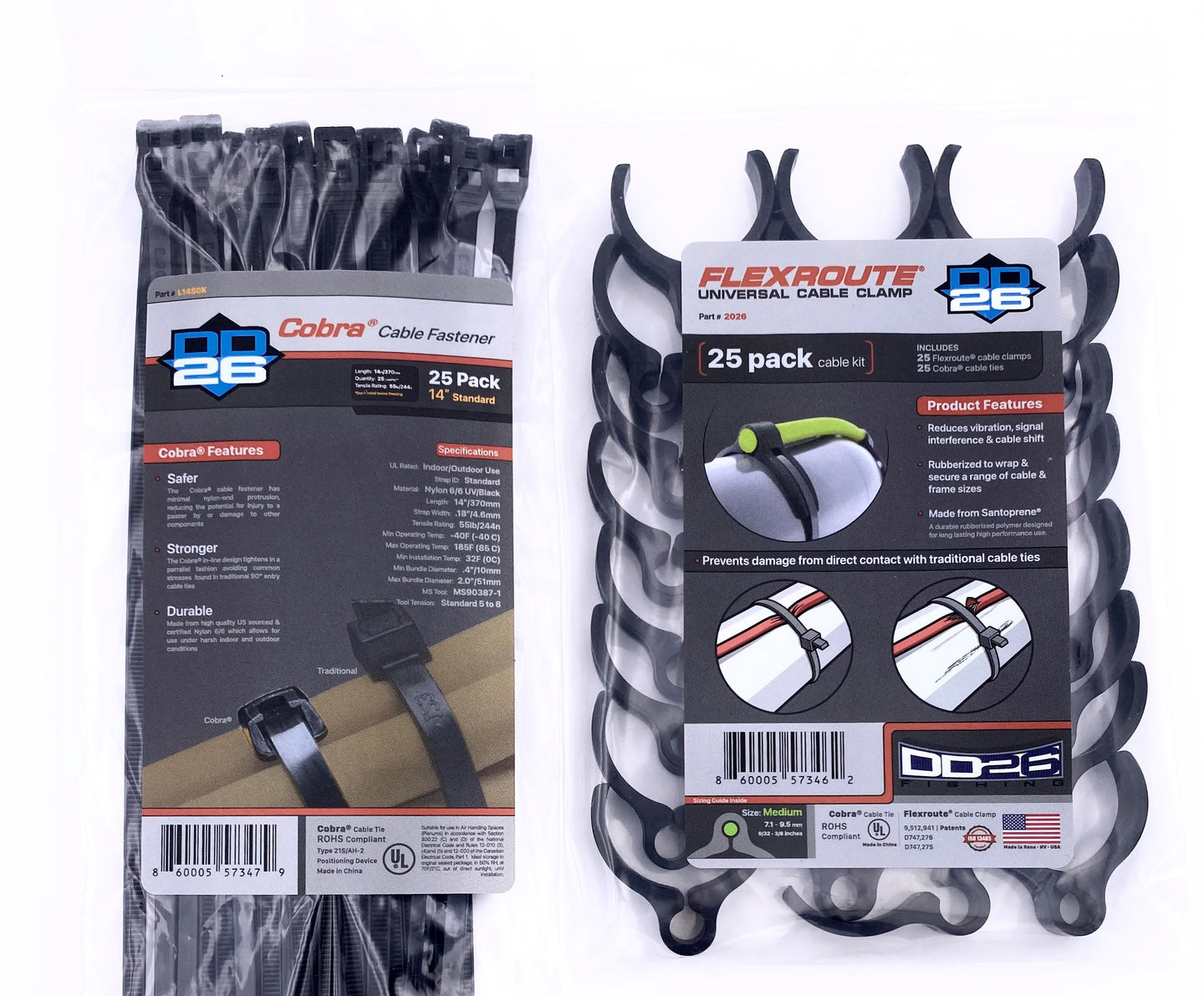

• 25 Pack comes with 25 cable clamps and 25 low profile zip ties
• 100 Pack comes with 100 cable clamps and 100 low profile zip ties

• Small: 4.7-6.2 mm (0.185-0.244 in.)
  Medium: 7.1-9.1 mm (0.280-0.358 in.)
  Large: 9.5-12.3 mm (0.374-0.484 in.)

From the Manufacturer
Flexroute® is a patented, flexible TPV cable clamp designed to be used with a cable tie to create a
cushioned routing point for fully insulated wire and cable, hose and tubing. It is intended for cable-
management locations where use of a cable tie by itself would otherwise be appropriate. When properly
selected and installed, Flexroute® helps position and separate serviceable lines at the routing point.
Flexroute® is a general-purpose routing accessory. It installs around lines that are already routed and
connected, allowing an additional routing point to be added without disconnecting the line or
disassembling the system. Follow all equipment-manufacturer requirements, codes and regulations
applicable to the underlying system.
Flexroute® is made in the USA.

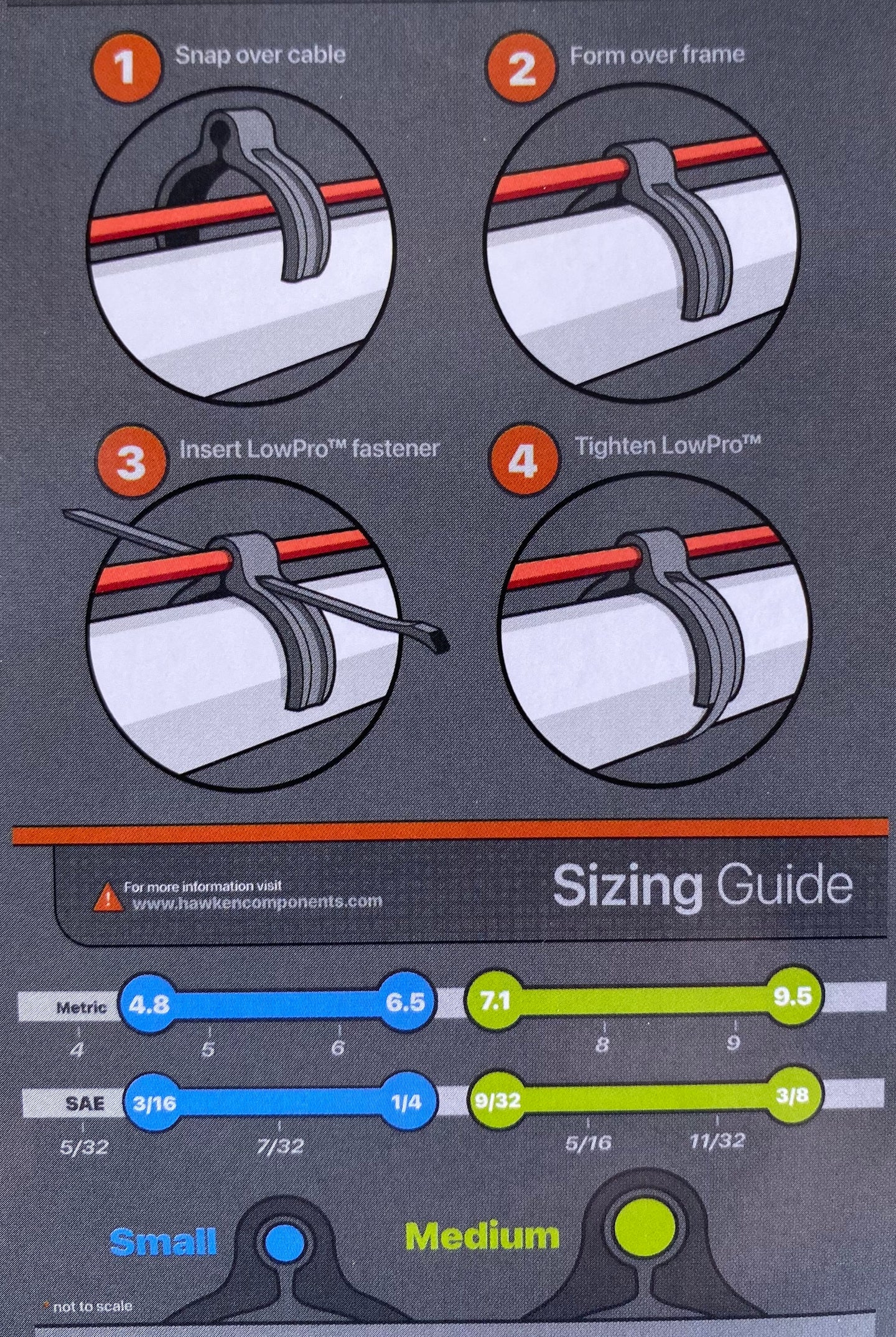

Installation
Position Flexroute® around the routed line, pass a compatible cable tie through the clamp channel and
around the mounting surface, and secure the tie in accordance with the cable-tie manufacturer’s
instructions.
Use a cable tie appropriate for the application and installation conditions. Any specification or rating
associated with the cable tie applies to the tie only and does not establish a corresponding rating for the
Flexroute® clamp or complete installation.
After installation, confirm that the locking head is fully engaged, the tie remains secure, the routed line is
not pinched or damaged, and all required supports, restraints, clearances, heat shielding and retention
hardware remain in place. If the tie loosens, does not remain secured or damages the routed line, do not
use the installation.

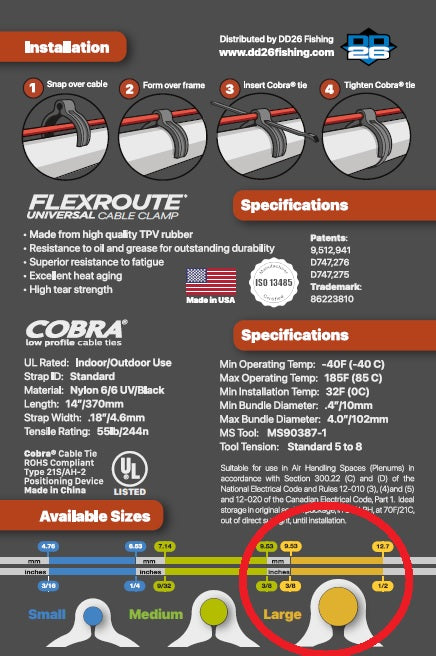

Available Sizes
Flexroute® is available in multiple sizes.
Select a size that fits the outside diameter, shape and construction of the routed line without forcing,
pinching, deforming or damaging the line, clamp or cable tie.
Important Use Information
Not load-bearing: Not for lifting, suspension, structural support, cargo restraint or any weight-bearing
use.
Safety-critical systems: Flexroute® is a supplemental routing accessory. Do not use it as, or in place of,
any equipment-manufacturer-required support, restraint, retention device, fitting, routing, clearance, heat
shield or safety barrier. The installation must remain safe if the Flexroute® clamp or cable tie fails.
Electrical: Use only with fully insulated wire or cable. Flexroute® does not provide electrical insulation
or electrical protection.
Serviceable lines only: Do not use Flexroute® to repair, reinforce or compensate for damaged or
unserviceable wire, cable, hose or tubing.
Ratings and testing: Do not infer a load, temperature, chemical-compatibility, environmental-exposure
or other performance rating unless Hawken Components expressly provides that rating for Flexroute®.
Inspection: Inspect the Flexroute® clamp, cable tie and routed line before installation, periodically
during use, and after service or an event that could affect the installation. Replace any component showing
visible damage, deterioration, loosening or loss of secure retention.

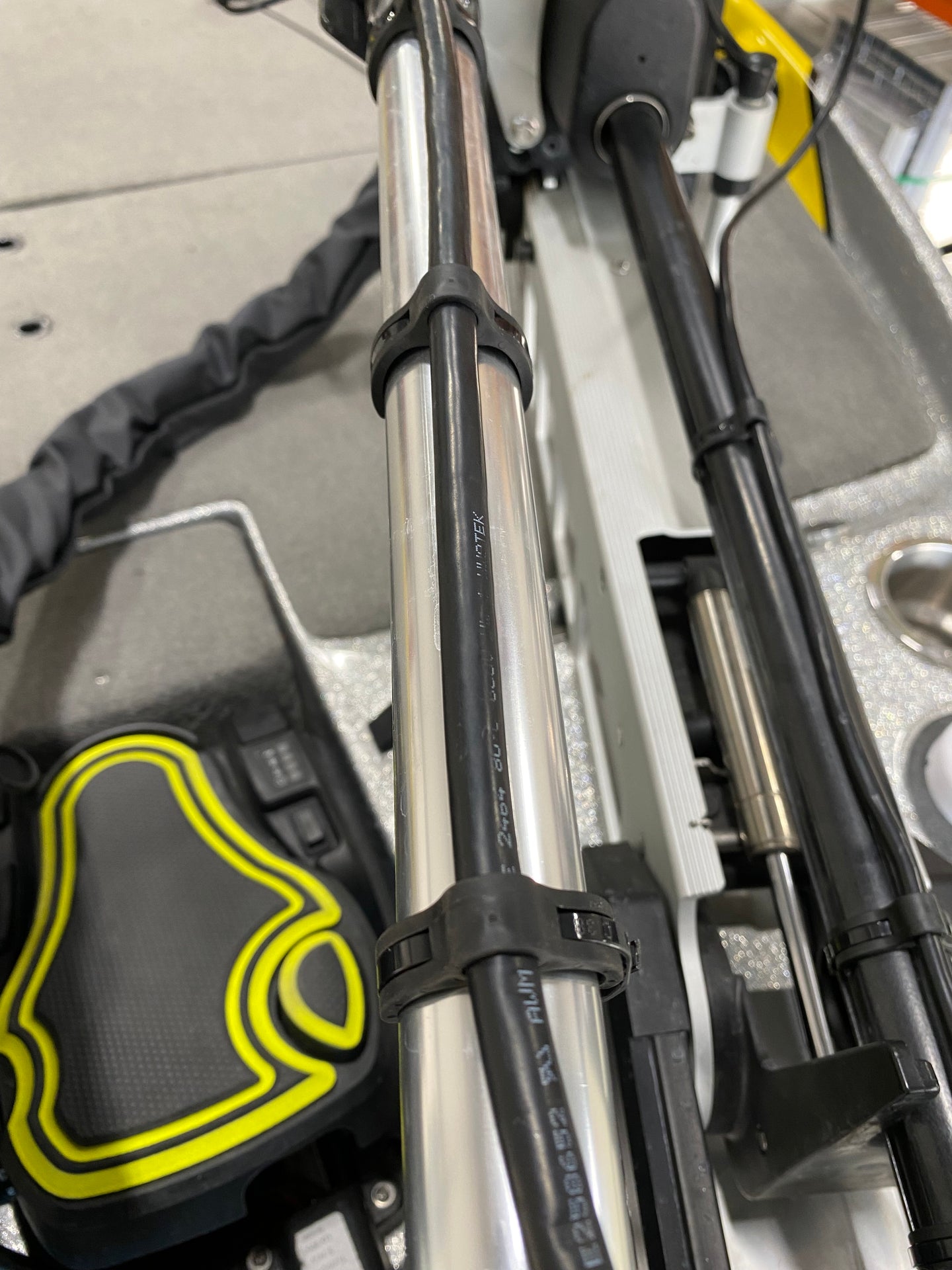

Application photographs: Customer or real-world installations illustrate possible routing locations
only. They do not certify or establish the safety of a particular installation.

DD26 Fishing is an authorized dealer of Flexroute!

 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
